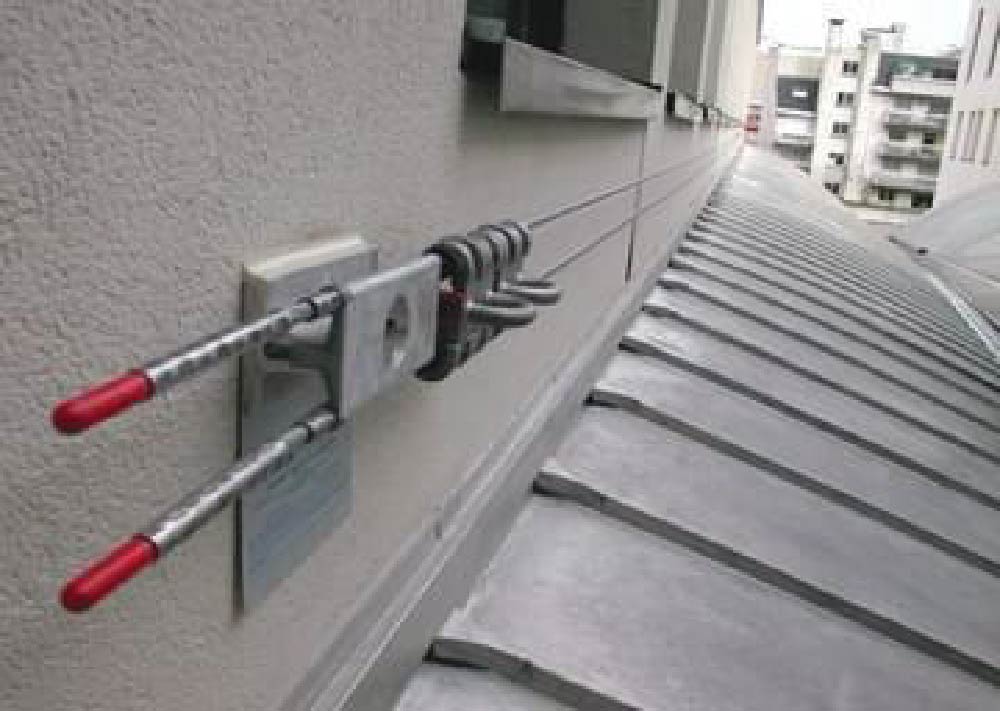

View Catalogue travsafe™ - twin cable lifeline
The travsafe™ lifeline with its two cables is the most efficient and
sophisticated lifeline on the market.
Thanks to its special design, the slider easily moves past the intermediate cable brackets placed, with no need for any manual intervention.
Two versions are now available:
- Standard travsafe™ (with stainless steel shock absorber rings)
- travsafe™ with two-material shock absorber ring
These two travsafe™ lifeline versions can be used by 3 to 5 persons and are designed for installation under ceiling, on wall or ground. The anchors can be installed on any structure or by using post interfaces. Intermediate anchors must be positioned no more than 15 meters apart.
The travsafe™ lifeline is an anchoring system equipped with horizontal, flexible belaying supports which comply with the requirements of the EN 795-C standard.
Available downloads
- Certificate of conformity travsafe material

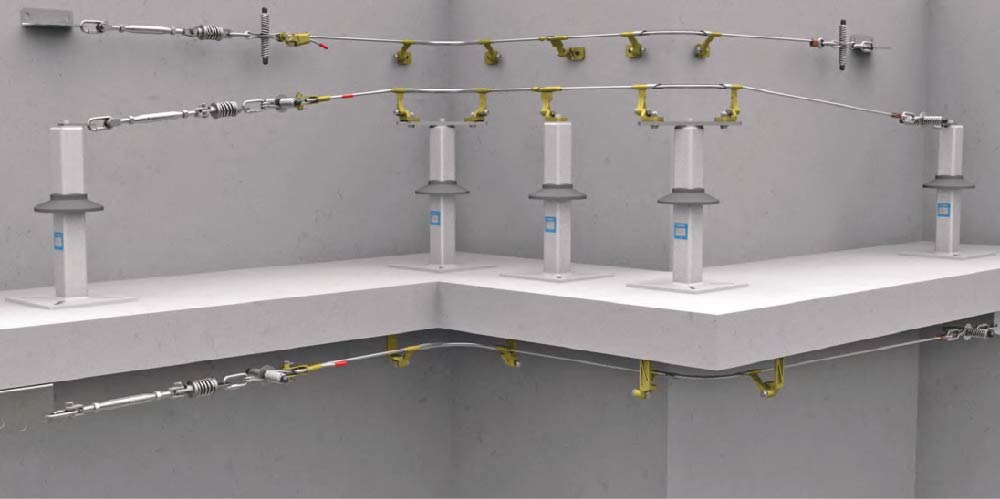

travsmart - 150 kg
The new travsmart lifeline is an evolution of the previous version. It complies with the European norm EN792-C:2012 and the CEN/TS16415:2013 for multi-user.
As an extension of Tractel® High Capacity Range, the travsmart lifeline is now certified for user weighing up to 150kg inclduing all their equipment. This lifeline is certified for a simultaneous use for a maximum of 5 users 100kg or 3 users 150kg.
Intermediate anchors must be positioned no more than 15 meters apart. In single span configuration (without intermediate anchor), Tractel has certified the travsmart lifeline with a maximum distance between end anchors of 30m!
Tractel has certified all of its self retracting fall arrester (EN360) and guided type fall arresters (EN353-2) rated 150kg. All lanyards certified EN 355 can be used with the travsmart lifeline.
travsmart is the most polyvalent lifeline of Tractel®’ portfolio. The travsmart lifeline is certified for the following installation: overhead, on a wall, on an inclined surface up to 15°, on the ground or on a post.
The travsmart lifeline advantages:
MEETS THE USER’S NEEDS:
- Choices of installations and uses (ergonomics).
- Automatic anchor crossing thanks to the travsmart slider.
- The user can work on either side of the lifeline without the need to disconnect (improved safety).
- Wire rope available in galvanized steel or stainless steel.
MEETS THE INSTALLER’S NEEDS:
- No special tools are required for the installation of the lifeline.
- Thanks to the wedge socket, the risk of the cable clamp nuts coming loose over time is fully eliminated.
- Quick and easy installation of the lifeline thanks to the design of the intermediate anchor.
- In the event of a fall, there is no need to fully dismantle the lifeline.
- Simply loosen the cable to remove and reinstall the failed intermediate supports (installation time reduced).
Available downloads
- Certificate of conformity travsmart 150kg
travflex™ 2

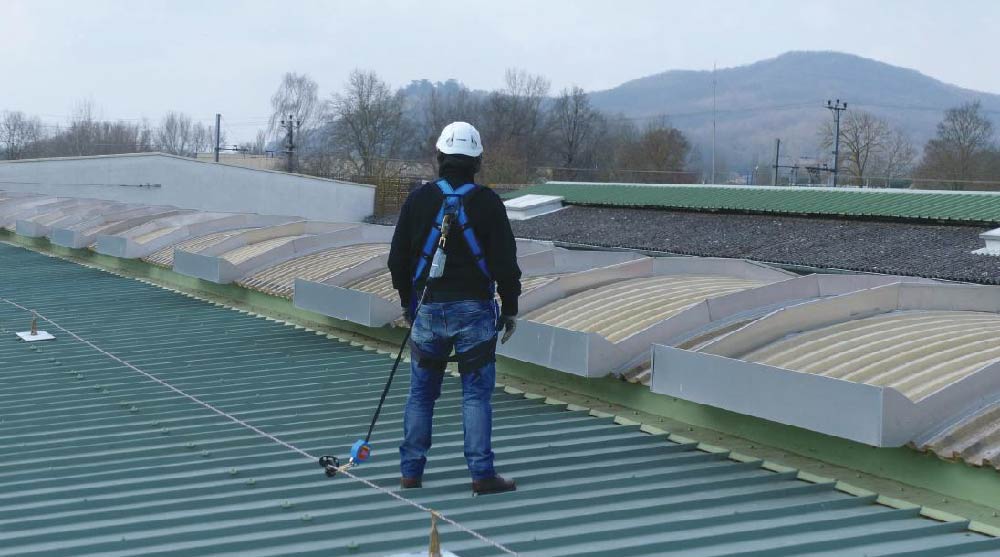

travflex™ 2 is a single cable lifeline, enabling automatic passage over anchors. The new travflex™ 2 lifeline is designed for installation on concrete roofs and corrugated metallic tray roofing and complies with the requirements of the EN 795 C standard. Intermediate anchors must be positioned no more than 15 meters apart. The lifeline is designed for up to three users.
travflex™ 2 may be installed on metallic roofing with a minimum thickness of 0.6 mm or on concrete roofs. It can also be fitted in a straight line on a façade
MEETS THE USER’S NEEDS:
Highly versatile in terms of where it can be installed and how it can be used
Easy to pass over intermediary anchors, no need for manual intervention.
The user can work on either side of the lifeline. There is no need to disconnect when changing sides (improved safety).
MEETS THE INSTALLER’S NEEDS:
Exclusive wedge clamp system eliminating risk of loosening over time.
No special equipment required for assembly. Standard tools are sufficient.
The wire rope is extremely quick to assemble for enhanced efficiently. In the event of a fall, the anchors need to be replaced but this can be done without dismantling the entire lifeline, saving time.
Available downloads
- Certificate of conformity travflex™ 2 wire rope

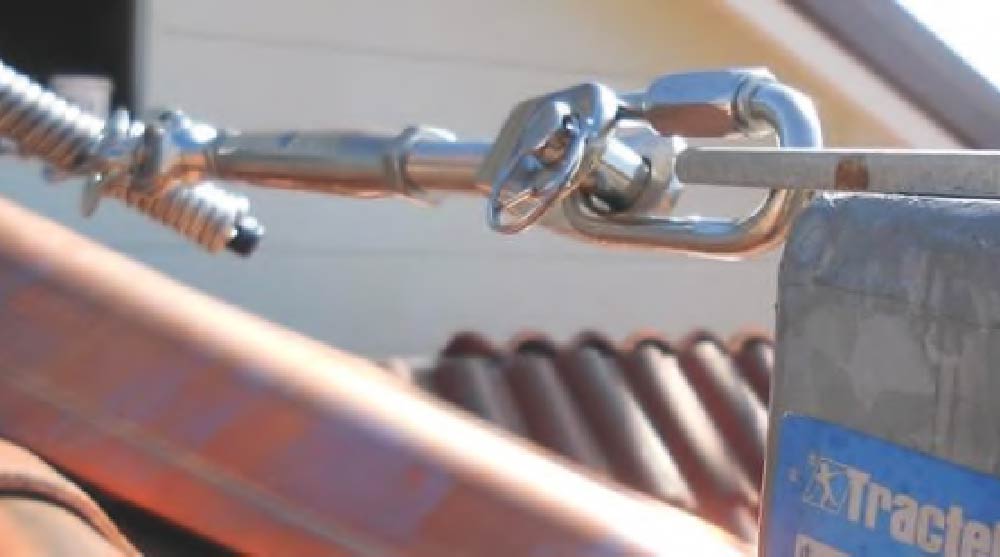

travspring™ 150kg
The new travspring™ lifeline is an evolution of the previous version. It complies with the European norm EN792-C:2012 and the CEN/TS16415:2013 for multi-user.
As an extension of Tractel® High Capacity Range, the travspring™ lifeline is now certified for user weighing up to 150kg inclduing all their equipment. This lifeline is certified for a simultaneous use for a maximum of 5 users 100kg or 3 users 150kg.
Intermediate anchors must be positioned no more than 15 meters apart. In single span configuration (without intermediate anchor), Tractel has certified the travspring™ lifeline with a maximum distance between end anchors of 30m!
Tractel has certified all of its self retracting fall arrester (EN360) and guided type fall arresters (EN353-2) rated 150kg. All lanyards certified EN 355 can be used with the travspring™ lifeline.
travspring™ is a simple yet engineered solution. It is designed to be proximity lifeline as the intermediate anchor must be crossed manually. The travspring™ lifeline is certified for the following installation: on a wall, on an inclined surface up to 15°, on the ground or on a post. In addition, in a single span configuration, travspring™ can be installed overhead.
travspring™ lifeline can be equipped with 1 or 2 INRS absorbers depending the need of the project.
The travspring™ lifeline advantages:
MEETS THE USER’S NEEDS:
- Proximity lifeline
- Choices of installations and uses (ergonomics).
- The user can work on either side of the lifeline without the need to disconnect (improved safety).
- Wire rope available in galvanized steel or stainless steel.
MEETS THE INSTALLER’S NEEDS:
- No special tools are required for the installation of the lifeline.
- Thanks to the wedge socket, the risk of the cable clamp nuts coming loose over time is fully eliminated.
- Quick and easy installation of the lifeline thanks to the design of the intermediate anchor.
- In the event of a fall, there is no need to fully dismantle the lifeline. Simply loosen the cable to remove and reinstall the failed intermediate supports (installation time reduced).
Available downloads
- Certificate of conformity travspring™ 150kg

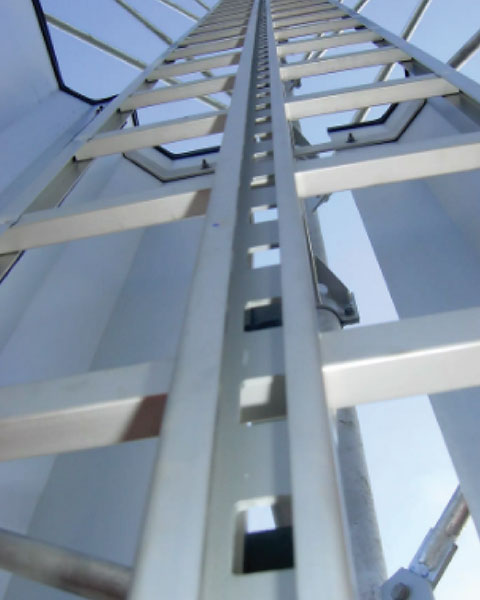

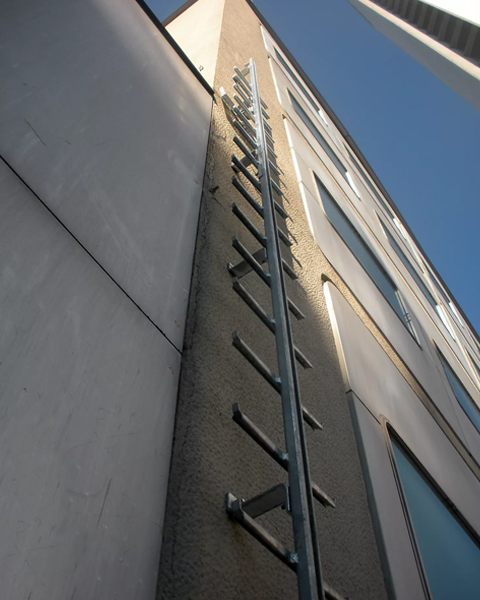

FABA™ System A12
- Dimensions rail profile: 48 x 32 x 3 mm
- Material: Hot-dipped galvanised steel or stainless steel (1.4571)
- Design: Ladder with central upright or just rail
- Spacing in between stops: 40 mm
- Spacing in between rungs: 280 mm
- Rungs: Straight and welded on the back of the rail
- Width of the ladder: 380 mm
- Primary lengths: 5600 and 2800 mm
- Adjustment lengths: 560, 840, 1120, 1400, 1680, 1960, 2240, 2520, 3080, 3360, 3640, 3920, 4200, 4480, 4760, 5040 and 5320 mm
- Maximum distance between fixings: 1400 mm for the ladder and 1960 mm for the rail.
Available downloads
- Certificate of conformity FABA™ A12
FABA™ System AL2
- Dimension rail profile : 48 x 32 x 3 mm.
- Material : Hot-dipped galvanished steel or stainless stell (1.4571).
- Primary length : 5600 and 2800 mm.
Available downloads
- Certificate of conformity FABA™ AL2

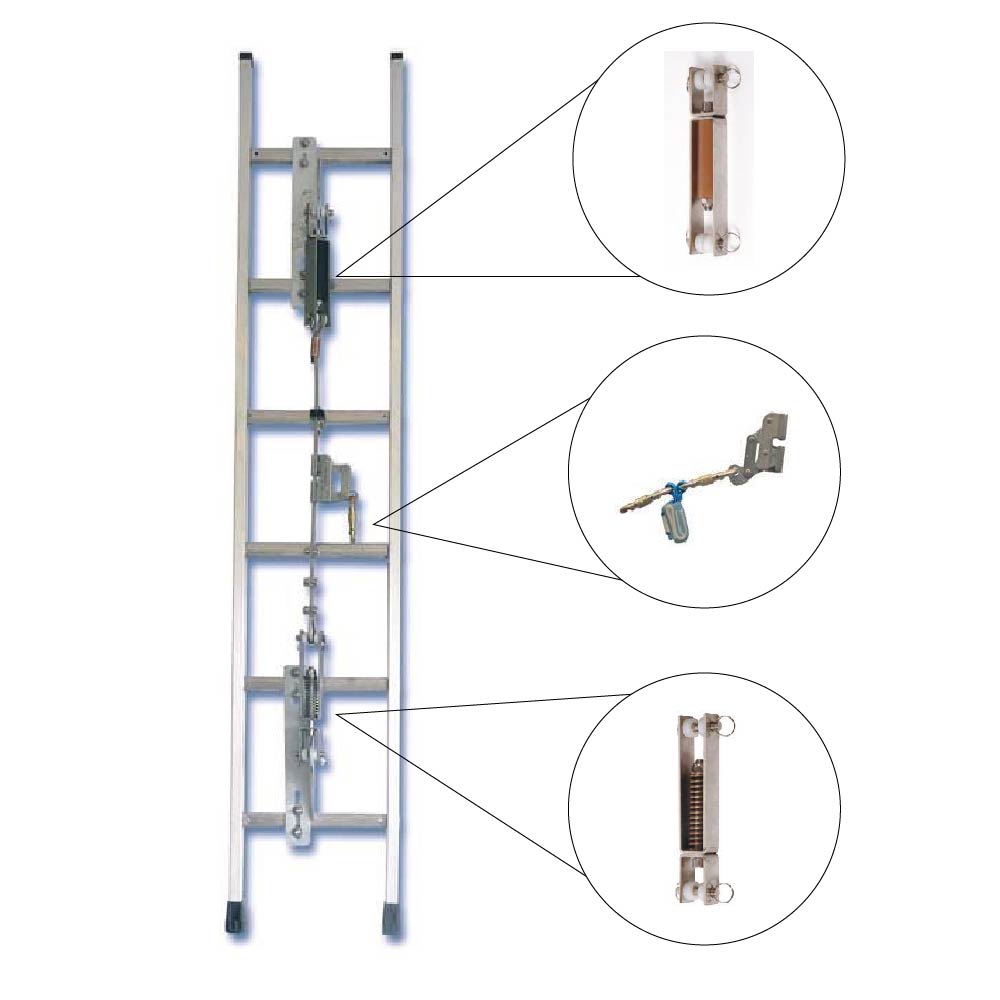

stopcable™ 150kg
stopcable™ S 150 kg
The use of a ladder to gain access to a high level workstation can pose an element of risk. The purpose of the stopcable™ S system is to ensure the safety of personnel throughout their ascent. The stopcable™ S vertical lifeline is a mobile anchoring device to enable a person to move on a vertical axis in perfect safety and without having to disconnect themselves. It consists of a fixed point and individual mobile equipment. The stopcable™ S vertical lifeline was designed, created and tested to comply with the requirements of the EN353-1 and EN 353-2 standards.
Available downloads
- Certificate of conformity stopcable™S 150kg
